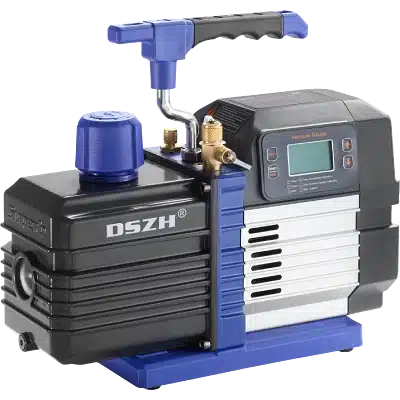

Intelligent double-stage vacuum pumps are essential equipment used for evacuating sealed containers and servicing refrigeration systems using refrigerants including CFCs, HCFCs, and HFCs, such as R32, R600, R1234YF, R22, and R410A, among others. In this case, the Intelligent Double Effect Vacuum Pump PRO incorporates a brushless DC motor, high operating speed, stable and powerful evacuation performance, a compact design, and low noise levels.
It also features an integrated solenoid valve and an anti-backflow oil circuit design when power is interrupted. In addition, it includes an integrated digital vacuum gauge and an optional mechanical vacuum gauge, a spark-free design suitable for flammable gases such as R32 and R600, an integrated pump cylinder, a maximum vacuum level of 15 microns, a flow rate of 354 l/min, dimensions of 352 x 136 x 312 mm, and a weight of 11.5 kg.
Code
4646800356
Gas
A2L, A2
Flow
354 l/min
Unit Pack.
1
Intelligent Double Effect Vacuum Pump Pro in Professional Environments
This solution is suitable for A2 and A2L gases. Therefore, it is ideal for installation, commissioning, and maintenance operations in professional refrigeration systems. Furthermore, its compact design with reinforcements and carrying handle makes transportation between service calls or warehouse work areas easier.
In addition, the brushless DC motor provides stable and powerful evacuation performance. As a result, the equipment is well suited for applications that require vacuum consistency and precision during servicing operations.
Refrigerant Compatibility and Typical Applications
The unit is designed to work with a wide range of refrigerants commonly used in the industry. For example, it is compatible with R32, R600, R1234YF, R22, and R410A, among others. Likewise, its spark-free design enhances its suitability for applications involving flammable gases.
On the other hand, the integrated pump cylinder allows the unit to achieve a high and precise final vacuum level. In this regard, its technical configuration meets the requirements of workshops, installers, and maintenance companies working with different refrigerant types.
Advantages for Distributors and Retail Outlets
For distributors, warehouses, and technical hardware suppliers, this equipment offers several operational advantages. It combines a compact format, easy transportation, and clearly defined specifications. In addition, the integrated digital vacuum gauge provides a configuration specifically designed for professional use.
However, its value extends beyond technical applications. It also represents an attractive solution for B2B catalogs requiring equipment compatible with multiple refrigerants and prepared for specialized maintenance operations.
