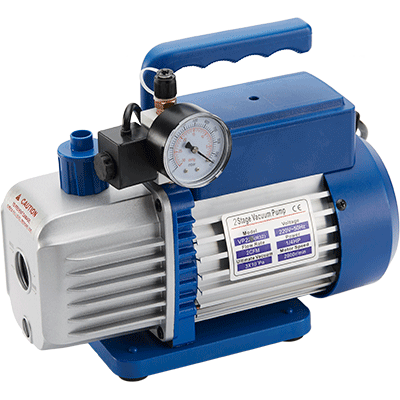

DOUBLE-ACTING VACUUM PUMP R32

bandera espanola
bandera francesa

Double acting vacuum pump, with casing made of aluminum. Ergonomic handle with protection for a better grip and greater comfort. Sight glass with oil level indicator. Sturdy base for good stability. Vacuum gauge Ø 50 mm., 1/8 NPT thread of -30 “Hg / 0 -1000mbar / 0, to control the emptying process.

Suitable for gases: R-32, R410A, R134A, R407C, R404A, R22T, etc.
Flow: 42 L / min.
Power: 50Hz – 1/4 HP.
Weight: 6.1 Kg.
Final vacuum: 25 micron.
Oil charge: 250 ml.
1/4 threaded connection.
Dimensions: 270x129x216 mm.

Essential for refrigeration installations, it creates a vacuum inside the air conditioning circuit, extracting the air and humidity from inside.

Code

4646800000
4646870000

Model

VP215 SV
VP225 SV

Gas

R-32 – R410A*
R-32 – R410A*

Power

50Hz
50Hz

Unit Pack.

1
1

Technical sheet
