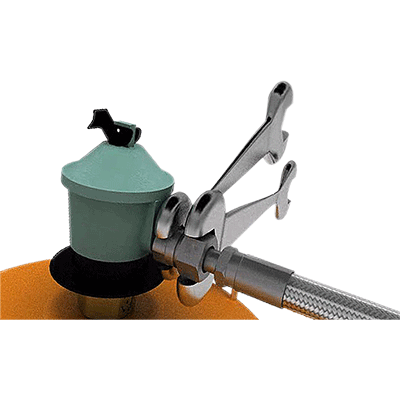

BUTACLIK® STAINLESS STEEL FLEXIBLE FOR BUTANE BOTTLES

bandera espanola
bandera francesa

Butaclik, flexible stainless connection for butane/propane bottles, is used for connecting fixed gas appliances, ideal for paella holders.

Manufactured according with Standard UNE EN 14800.

Technical data:
1-PVC external tube protector.
2-Stainless steel AISI 304 mesh.
3-Corrugated Stainless steel AISI 316L inner tube.
5-Range of measures: 750 – 1000 – 1500 – 2000 with F-F connections, or, on request, with safety valve according with Standard UNE EN 15069.
6-Does not have expiration.

Inner diameter (mm): 12
External diameter (mm): 20
Curvature radius (min): SIN
Maximum pressure (bar): 0.5
Flow rate: 0.8m³ / h
Max. Temperature: 70ºC

modelo patentado

Code

5250750000
5251000000
5251500000

Description

Butaclik CFI
Butaclik CFI
Butaclik CFI

Length mm

750
1000
1500
