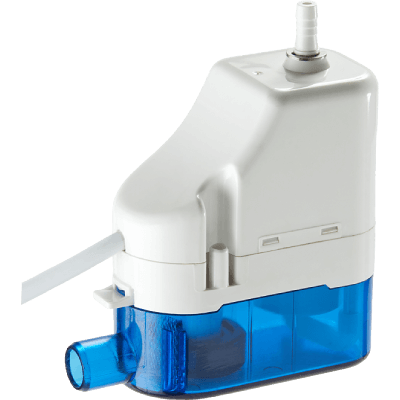

Angular Condensate Pump For Air Conditioning, an “angular” solution to remove the water produced by condensation of a SPLIT. Its installation is carried out inside the angle of the channel (90º), thanks to its shape and reduced dimensions, it is fully integrated into the setup. This model is known for its reliability and very quiet operation, with a noise level of less than 19 dB. It has a 45 ml tank with an electrical contact system with a float inside.
Moreover, it includes an audible alarm to signal overflow if the tank reaches its maximum capacity, even before starting to overflow. It can be connected to equipment with a maximum power of 8 kW. Its electrical specifications are 110-220V, and it offers a maximum drainage flow of 24 l/h (6.2 GPH), with a maximum discharge height of 10 m. Tubes and accessories needed for its installation are provided, resulting in a very discreet and compact solution, ideal for places where quiet is essential.
Code
4646882300
Flow
24 l/h
Unit. Pack.
1
Gral. Pack.
20
Benefits of the Angular Condensate Pump For Air Conditioning
Simple and Aesthetic Installation
The angular condensate pump for air conditioning systems offers the perfect blend of aesthetics and functionality. Its design allows for quick and easy installation without disrupting the visual harmony of the setting, making it the preferred choice for spaces where appearance is key.
Reliable and Quiet
Considering the importance of acoustic comfort, the angular condensate pump stands out for its quiet operation. This makes it ideal for installations in offices, living rooms, libraries, or any area where noise is a disturbing factor.
Integrated Safety and Protection
Safety is a priority in any installation, and the angular condensate pump comes equipped with an advanced sound alarm system. This system prevents overflow damage by alerting timely to any anomalies, thus ensuring safe and continuous operation.
Energy Efficiency and High Performance
The pump is designed to work with equipment up to 8 kW, ensuring efficient condensate removal with low energy consumption. With a maximum drainage flow of 24 l/h and a discharge height of up to 10 m, this pump meets the requirements of the most demanding installations.
