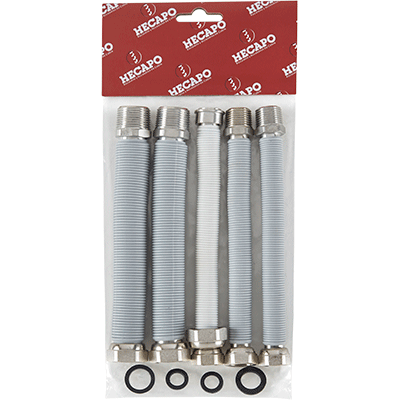

WALL BOILER CONNECTION KIT WITH COATING

bandera espanola
bandera francesa

Composition Kit:

– 2 INOX extension DN 12 M-H 1/2 length 200/400 + seals (WATER)
– 2 INOX extensions DN 20 M-H 3/4 length 200/400 + gaskets (WATER)
– 1 INOX extensions DN 12 H-H 1/2×3/4 length 200/400 + gaskets (GAS).

Characteristics: (1) Corrugated pipe in stainless steel AISI 316L (2) Corrugated pipe in stainless steel AISI 316L + coating. Nut made of nickel-plated brass, threaded according to EN 228-1 standard. Maximum working pressure: 10 bar. NBR gasket 1/2 for gas. EPDM gasket 1/2, 3/4 and 1 for water.

Code

5170000010

Description

Wall boilers connections with coating

Unit Pack.

1

Gral. Pack.

20

Technical sheet
