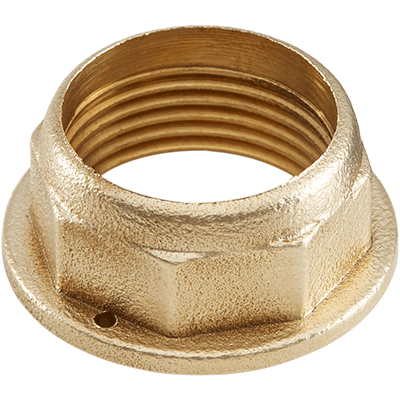

CLOSE NUT WITH SEAL HOLE

bandera espanola
bandera francesa

Applications:
Gas installations of the 1st, 2nd and 3rd family. Plumbing installations in general, heating, solar energy, compressed air, thermal installations, refrigeration installations, diesel networks and gasoline in general.

Materials:
Manufactured in Brass according with Standards UNE-EN 12164, UNE-EN 12165 or UNE-EN 1982.

Features:
Basically designed to join or rivet to a device or equipment which must be connected by thread. It has holes to be sealed. For proper installation, use the appropriate sealing components according to the Standard that requires the application or use.

On request, special manufacture with any Ø.

Code

4523342450
4523782750

Nut

3/4
7/8 (6/20)

Ø Hole

11,20
12,50

Unit Pack.

25
25
